Are earthing fixing clamps prone to loosening or poor contact during long-term use?

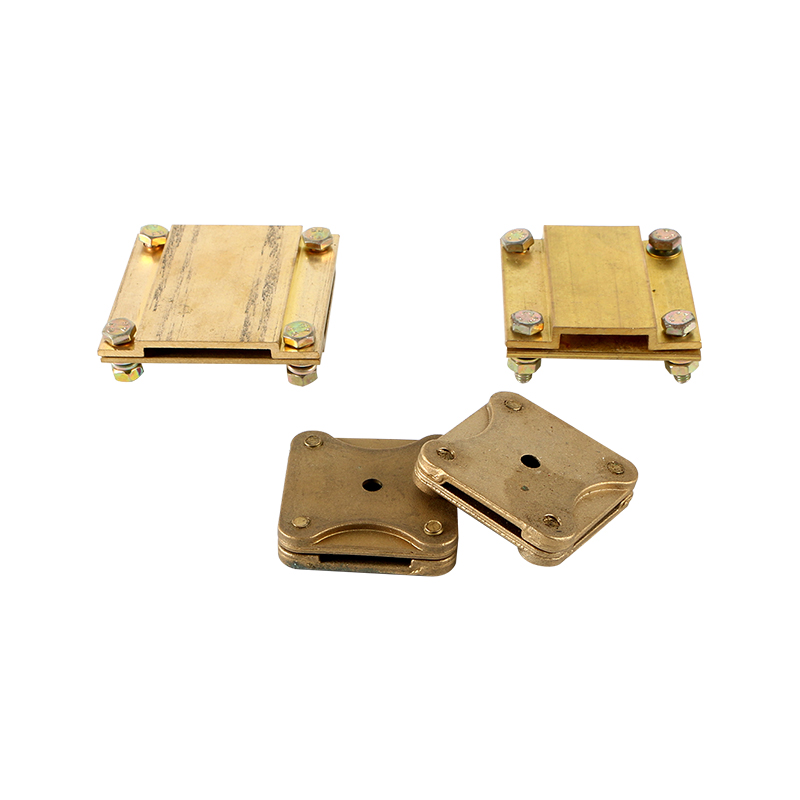

Basic structure and function of earthing fixing clamp
The earthing fixing clamp is a fastening device used to connect the grounding conductor to the grounding body in the electrical system. It is usually used in buildings, transmission lines, photovoltaic equipment and industrial electrical systems. Its main function is to firmly connect the grounding wire to the grounding electrode, grounding plate or metal component by mechanical fixing, so as to ensure the continuity and safety of the entire grounding system. The structure of the earthing fixing clamp usually includes bolts, clamping plates and fixed bases. Some models will also add anti-loosening washers or insulation protection components to improve the stability and protection of the connection. The materials are mostly copper, copper alloy, stainless steel or galvanized steel. The purpose is to enhance corrosion resistance while ensuring conductivity and adapt to the long-term use requirements of outdoor or complex environments.

Causes of loosening of earthing fixing clamps during long-term use
The earthing fixing clamp may become loose during long-term operation, and the reasons are more complicated. First, the metal will change its size during thermal expansion and contraction, especially in outdoor environments. The temperature difference between day and night and seasonal climate changes will cause the bolts or clamping parts to gradually loosen. Secondly, mechanical vibration is also an important factor leading to loosening. Under the influence of power equipment operation or wind and traffic vibration, the earthing fixing clamp may undergo micro displacement. Furthermore, insufficient pre-tightening force or failure to use anti-loosening measures during installation will cause the connection part to gradually lose its original clamping force. In addition, the creep characteristics of the material itself, especially soft metal clamps, may also cause the fixing force to weaken under long-term pressure. These factors work together to make the earthing fixing clamp loose after long-term use.

Mechanism of poor contact
Poor contact is usually closely related to loosening, but its causes are more diverse. The earthing fixing clamp is exposed to air, water vapor and pollutants for a long time, which is prone to oxidation or corrosion, resulting in a decrease in the conductivity of the contact surface. Corrosion products or dirt accumulate on the contact interface, which will increase the contact resistance and affect the grounding effect. In addition, if the surface of the earthing fixing clamp is not cleaned during installation, the residual oxide film or oil will make the initial contact resistance high and accelerate the contact degradation. After mechanical loosening, the contact area is reduced and the local current density is increased. It is more likely to cause arcing or ablation during lightning strikes or current shocks, further deteriorating the contact state. This poor contact not only affects the effectiveness of the grounding system, but also may increase equipment safety hazards.

Performance of earthing fixing clamps made of different materials in long-term use
There are differences in the stability of earthing fixing clamps made of different materials in long-term use. Copper and copper alloy clamps have good conductivity and strong corrosion resistance. They are relatively stable in hot and humid or coastal environments, but their prices are relatively high. Galvanized steel earthing fixing clamps have low cost and high mechanical strength, but they are prone to corrosion in high humidity or acid-base environments, which may cause the clamp to loosen or fail. Stainless steel earthing fixing clamps take into account both mechanical strength and corrosion resistance and are suitable for long-term outdoor exposure environments. The following table compares the long-term performance of earthing fixing clamps made of common materials:

The impact of installation process on loosening and poor contact
The installation process is crucial to the stability of earthing fixing clamps. If the bolts are not tightened according to the specified torque during installation, the initial fixing force may be insufficient, increasing the risk of loosening later. When anti-loosening washers or double nut designs are not used, the clamp is more likely to loosen in a vibrating environment. If the surface of the grounding conductor is not polished or cleaned, residual oxide film and impurities will reduce the initial contact quality. When different metals are in contact, if anti-corrosion coatings or isolation measures are not used, electrochemical corrosion may occur, further deteriorating the contact state. It can be seen that the standardization of the installation process not only affects the initial fixing effect, but also determines the reliability of the earthing fixing clamp in long-term operation.

The influence of the use environment on the long-term stability of the earthing fixing clamp
The use environment of the earthing fixing clamp has a great influence on its performance. In coastal or high humidity areas, salt and water vapor in the air will accelerate metal corrosion, resulting in deterioration of the contact surface and loosening of the bolts. In areas with severe industrial pollution, acidic or alkaline gases will corrode the metal surface, affecting the fastening force and contact performance of the clamp. In places with high vibration or high temperature difference, mechanical and thermal stresses will cause the frequency of bolt loosening to increase. Therefore, when selecting and installing, the use environment should be fully considered, and earthing fixing clamps with anti-corrosion design and anti-vibration structure should be selected.

Measures to improve the long-term reliability of earthing fixing clamps
In order to improve the reliability of earthing fixing clamps in long-term use, a variety of measures can be taken. First, select materials with strong corrosion resistance, such as copper or stainless steel, and add plating or protective coating on the surface to delay the corrosion process. Secondly, use anti-loosening washers, spring washers or double nuts during installation to enhance the fastening effect and reduce the risk of vibration loosening. The contact surface between the grounding conductor and the clamp should be cleaned and, if necessary, conductive paste should be applied to reduce contact resistance and delay oxidation. For grounding systems that are exposed to harsh environments for a long time, the bolt preload and contact status can also be checked regularly, and maintenance or replacement can be carried out in time.

Importance of regular inspection and maintenance
Earthing fixing clamps are inevitably affected by mechanical, chemical and electrical factors during use, so regular inspection and maintenance are particularly necessary. Resistance testing can detect signs of poor contact or loose clamps, and remedial measures can be taken in time. Appearance inspection can identify problems such as corrosion and deformation to avoid the expansion of faults. In environments with frequent lightning strikes or strong equipment vibration, the inspection frequency should be appropriately increased. Retighten or replace aging clamps when necessary to ensure the continuity and safety of the grounding system.

Future development direction of earthing fixing clamps
Future earthing fixing clamps will continue to be optimized in terms of structure and materials to improve their long-term stability. On the one hand, more anti-loosening structures will be introduced in the design, such as self-locking bolts and integral clamping designs, to reduce the risk of loosening due to vibration. On the other hand, materials will develop in the direction of high strength and high corrosion resistance, such as the use of composite plating or new alloys. At the same time, intelligent monitoring technology may be applied to the grounding system to achieve real-time monitoring of the contact status of the fixture and improve the timeliness and effectiveness of maintenance. These developments will further enhance the safety and reliability of the grounding system.
