  NEC 250 Grounding and Bonding: A Practical Guide for Installers and Buyers

  A crew drives two 8-foot ground rods, clamps the grounding electrode conductor to one rod, and calls it done. The electrical inspector red-tags the job because the second rod was never bonded to the first with a listed irreversible connector. That single missing bond is one of the most common NEC 250 violations, and it has nothing to do with how deep the rods went. Article 250 of the National Electrical Code governs grounding and bonding. It is not one rule. It is a system of requirements cover...

  2026-10-15

•

  Ground Wire Size for 400 Amp Service: EGC vs GEC and NEC Rules Complete Guide

  If you are sizing the ground wire for a 400 amp service, the first step is deciding which ground wire you mean. A 400A breaker or disconnect may need a 3 AWG copper equipment grounding conductor (EGC) under Table 250.122, while the grounding electrode conductor (GEC) connected to a ground rod can be as small as 6 AWG copper under Table 250.66. This article explains both rules so you can order the correct wire without guesswork. EGC vs. GEC: Two Different Grounding Conductors The term “ground ...

  2026-10-08

•

  Ground Wire Size for 200 Amp Service: NEC Copper and Aluminum Guide Explained

  When you upgrade a 100 amp panel to 200 amps, the grounding conductors are not something you should guess at. An electrical inspector will compare the ground wire size for 200 amp service against the service entrance conductors, the grounding electrodes, and the applicable NEC tables. Depending on which part of the system you are wiring, the answer can be 2 AWG, 4 AWG, or 6 AWG. The short version for a typical residential 200 amp service is straightforward: when the service entrance conductor i...

  2026-10-01

•

  Ground Wire Ampacity Chart: How to Size Grounding Conductors Correctly

  An electrical contractor is terminating a 200 A feeder that runs more than 150 feet to a new production line. The breakers are in place, the phase conductors are pulled, and the ground wire is the last item on the drawing. It is also one of the most frequently misapplied items on the job. The ground wire ampacity chart supplies the direct answer: for a 200 A overcurrent device, the minimum equipment grounding conductor is 6 AWG copper or 4 AWG aluminum. That answer carries one qualification, co...

  2026-09-24

•

  Ground Conductor Sizing: NEC Table 250.122 for EGC and Table 250.66 for GEC

  A contractor wiring a 400 A service for a new industrial building sized the grounding electrode conductor at 3 AWG copper because he used NEC Table 250.122, the same table he relies on for equipment grounding conductors on branch circuits. The engineer caught the error before inspection: for a 400 A service with 600 kcmil copper ungrounded conductors, Table 250.66 requires a 2/0 copper grounding electrode conductor. The 3 AWG would have carried normal current without complaint, but it would not...

  2026-09-17

•

  NEC EGC Size Chart: How to Select the Right Equipment Grounding Conductor

  An electrician on a commercial job opens the ground wire sizing table and discovers that a 200 A overcurrent device requires a 6 AWG copper equipment grounding conductor (EGC) — even when the phase conductors are oversized. That number does not come from an ampacity table; it comes directly from the EGC size chart in NEC Table 250.122. This distinction is easy to overlook, but it is critical for safe, code-compliant installations. The EGC is not a current-carrying conductor during normal operat...

  2026-09-11

•

  Lightning Rods: How They Work, Types, and What to Consider Before Installation

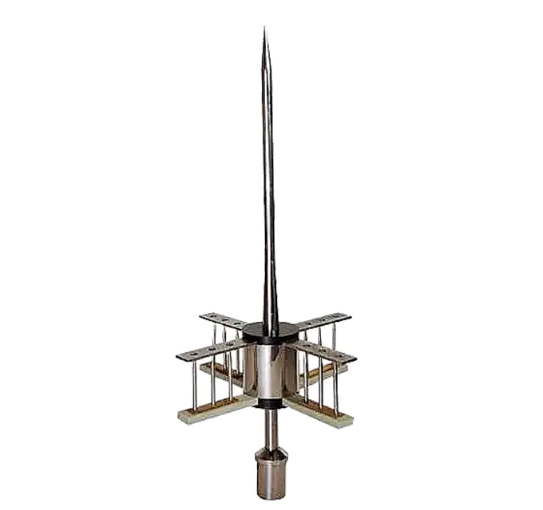

  Lightning rods protect structures only when the entire lightning protection system is designed, installed, and maintained as one unit. A rod without a proper grounding path is just a metal spike on the roof. This is the first thing experienced engineers check when reviewing a protection scheme, and it is also a common point of confusion for buyers who shop for lightning rods by price alone. What a Lightning Rod Actually Does A lightning rod, also called an air terminal, provides a controlled ...

  2026-09-10

•

  Grounding Rods Guide: Types, Selection, Installation, and Industry Applications

  Every grounding system tells a story about the soil it is buried in. A coastal substation may see the same copper-clad steel rod perform well for twenty years, while an identical rod in acidic clay can corrode far ahead of schedule. Project teams that compare only unit prices often discover this the hard way: the cheapest electrode is rarely the most economical one once it fails below a concrete slab or inside a backfilled trench. The practical conclusion is that a grounding rod should be chose...

  2026-09-03

•

  Grounding Inspection Pit: Types, Installation, and Selection Guide for Earthing

  A maintenance engineer at a 110 kV substation wants to verify the earth resistance of a newly connected ground electrode. The joint is buried under finished grade, so a simple test can turn into excavation, backfilling, and surface repair. A grounding inspection pit prevents this. It is a buried enclosure that keeps the connection and test point accessible while protecting them from soil, mechanical load, and accidental damage. What Is a Grounding Inspection Pit? A grounding inspection pit, a...
